Activities on Smart biometric clock (T2) Terminals

Louise Whalley Updated by Louise Whalley

1    Activities on the Smart biometric clock (T2) Terminal

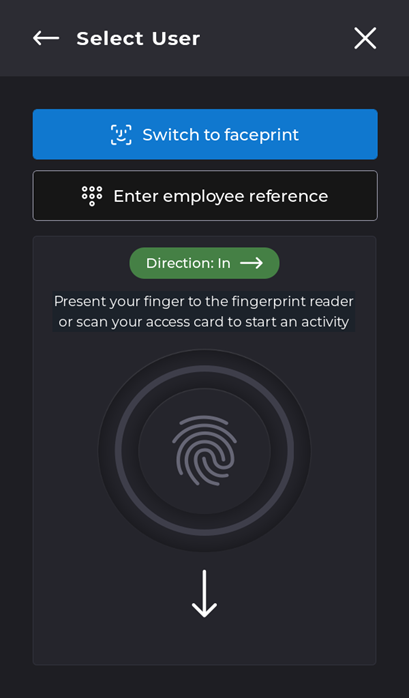

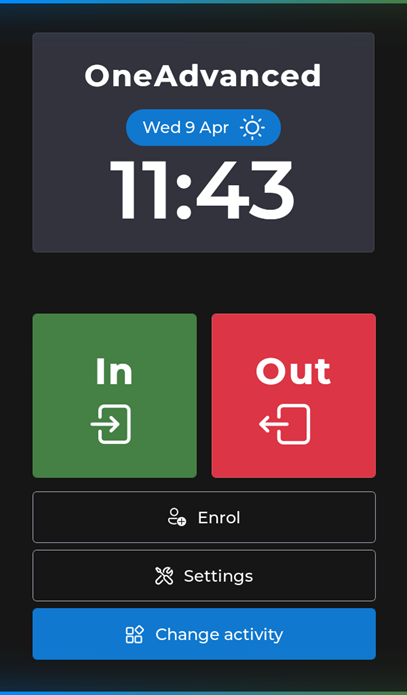

Activities are used by workers on the Smart biometric clock (T2) to quickly track their time doing tasks in a non-office-based work environment. It is possible to quit the process and return to the home screen at any point during the activities feature. To navigate to the feature, press the “Change Activities” button on the home screen; the User Select page will then be displayed. A user may select themselves via face recognition, fingerprint, proximity card, or badge number. The Smart biometric clock (T2) will then navigate to the Activity Select screen.

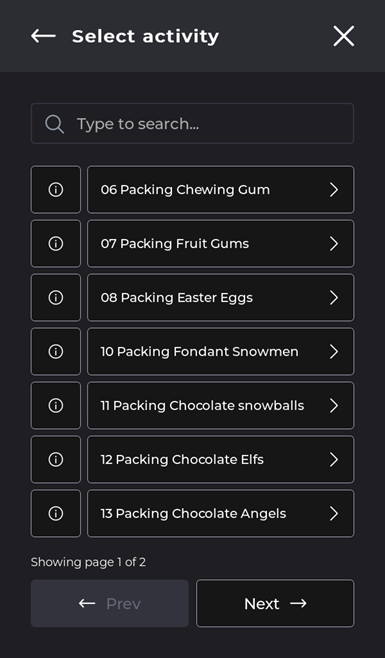

The Activity Select screen displays the list of activities stored on the device. To select an activity, tap on the row displaying the activity. The information icon displayed with each activity, when selected, will display a pop up containing a description of the activity.

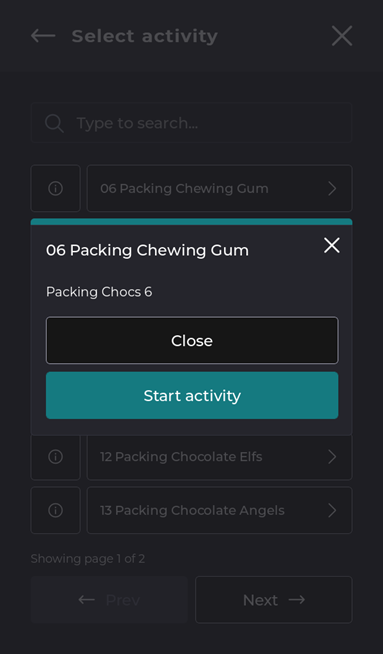

Figure: Activity selection screen and additional pop up message containing descriptions.

Once the activity has been selected the data will be stored locally on the Smart biometric clock (T2) and then sent to the Advanced Device and Access Manager Portal. The Smart biometric clock (T2) will then navigate to a Success Screen.

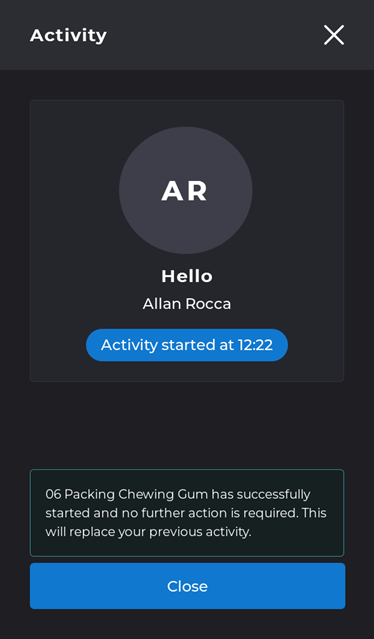

The Success screen displays information about the user and details about the selected activity. This screen will timeout to the home screen.

If only one activity is assigned to a terminal the Change activity button on the home screen layout will change to display the name of the activity.

Figure: Activity success screen on the device.
