Enrolling Users on the Smart biometric clock (T2) for Fingerprint recognition

Louise Whalley Updated by Louise Whalley

Users will need to be enrolled at a Smart biometric clock (T2) in order to use. This process will allow users to enrol the relevant biometrics against their user record and will involve the User interacting with the device.

Firstly the user enrolling will need their enrolment PIN from within Device and Access Manager, this is located against the user record.

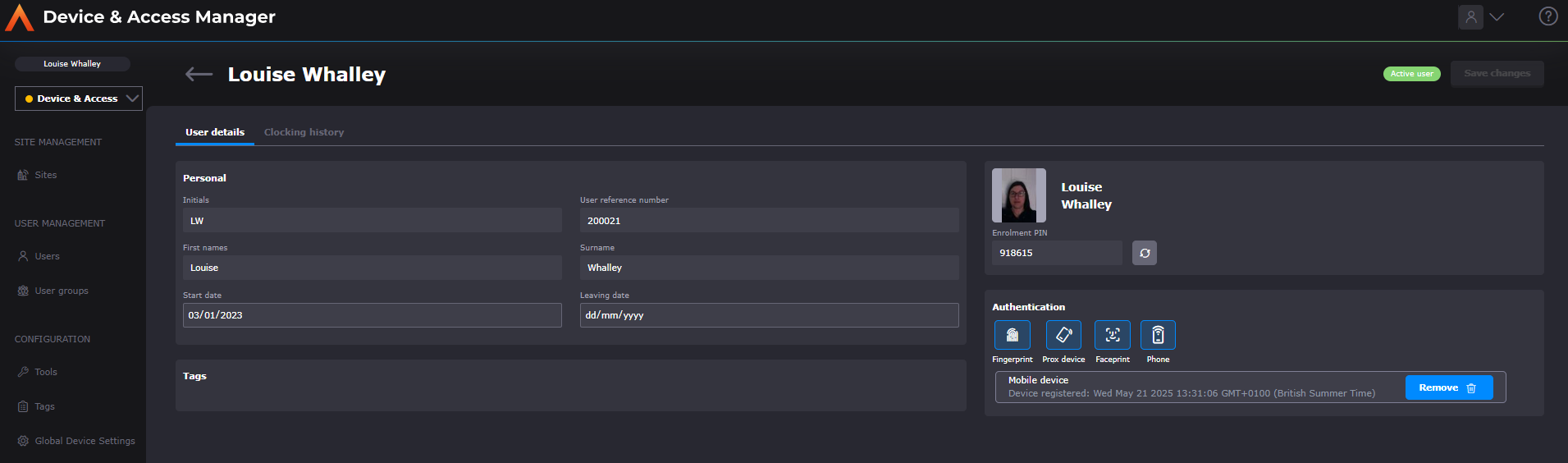

Figure 1: User record in Device and Access Manager Web Portal

From the Home screen of the Smart biometric clock (T2), the user should select the Enrol option, they will then be asked to enter their enrolment PIN.

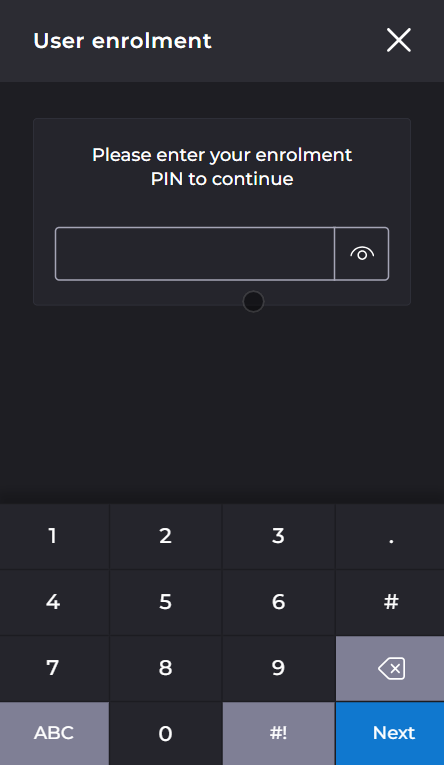

Figure 2: Smart biometric clock (T2) User PIN enrolment screen

Once the enrolment PIN has been entered the user can select the enrolment type, Fingerprint, Faceprint, Prox card or Mobile device.

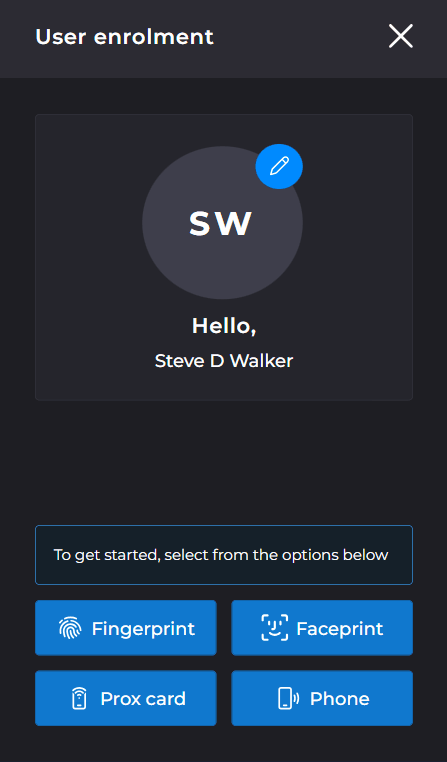

Figure 3: Smart biometric clock (T2) User enrolment type screen

A series of on screen prompts will then appear to guide the user through the process of registering their fingerprint on the Smart biometric clock (T2).

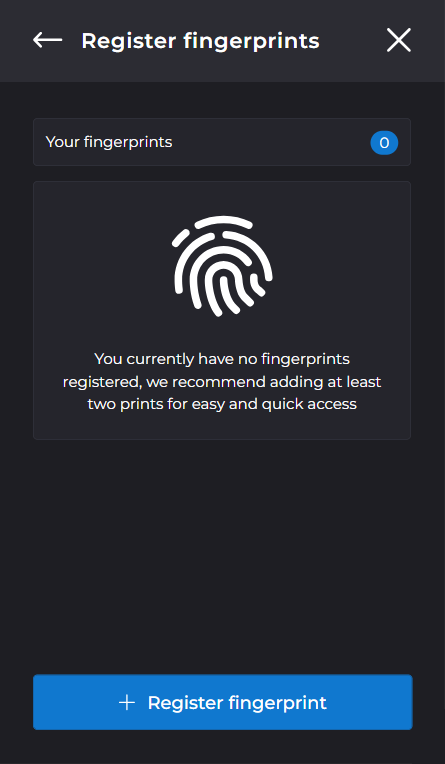

Figure 4: Register Fingerprints screen

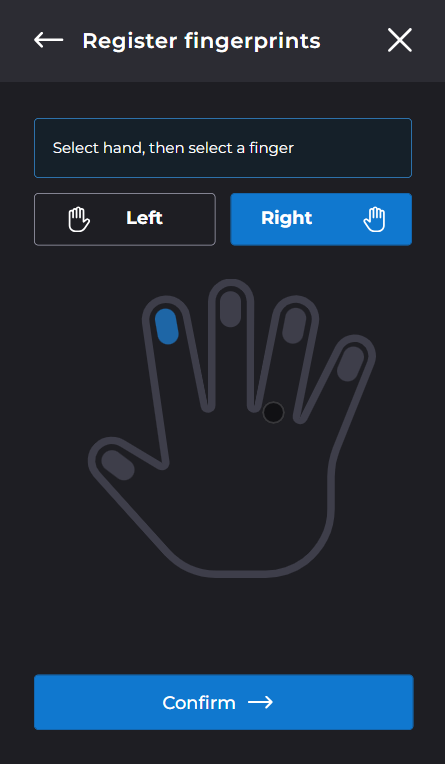

Figure 5: Fingerprint confirmation screen

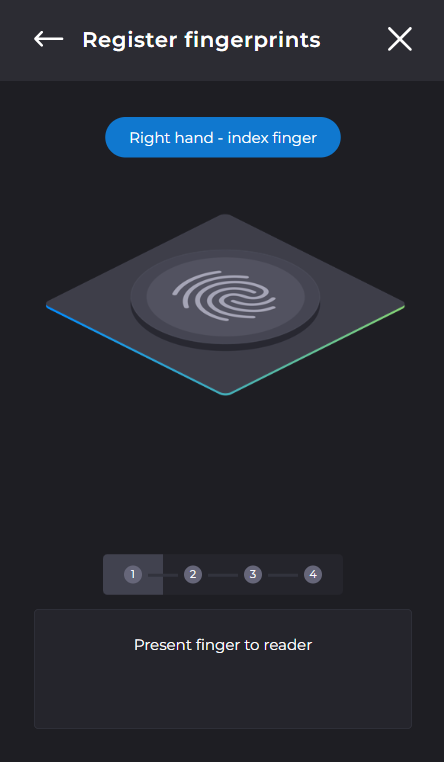

Figure 6: Registering fingerprint, present to reader screen.

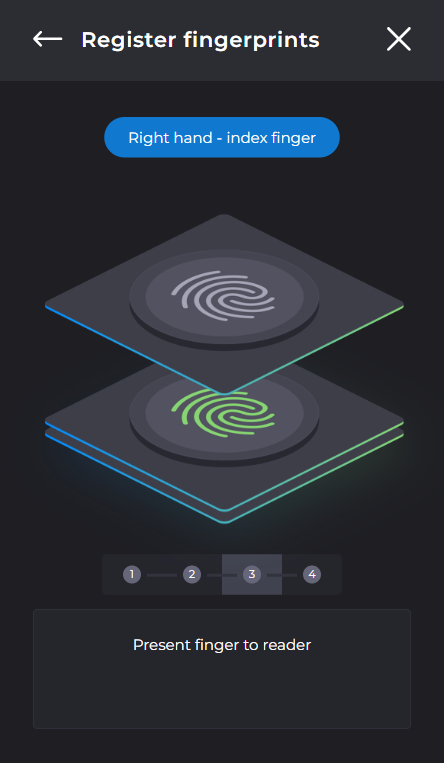

Figure 7: Represent finger to reader screen.

Figure 8: Represent finger to reader screen.

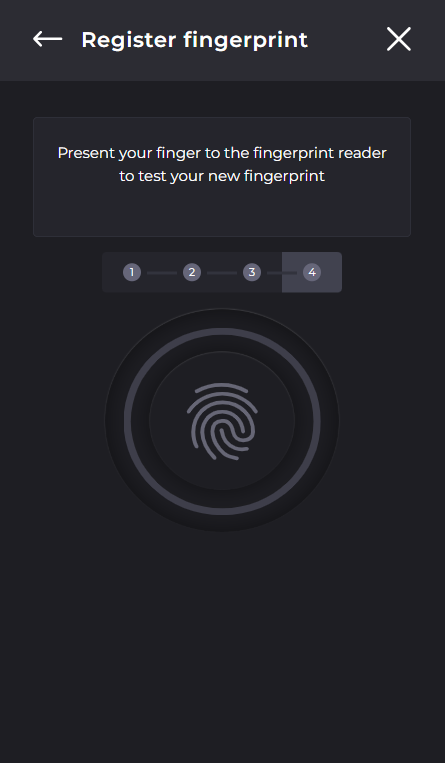

Figure 9: Test fingerprint screen.

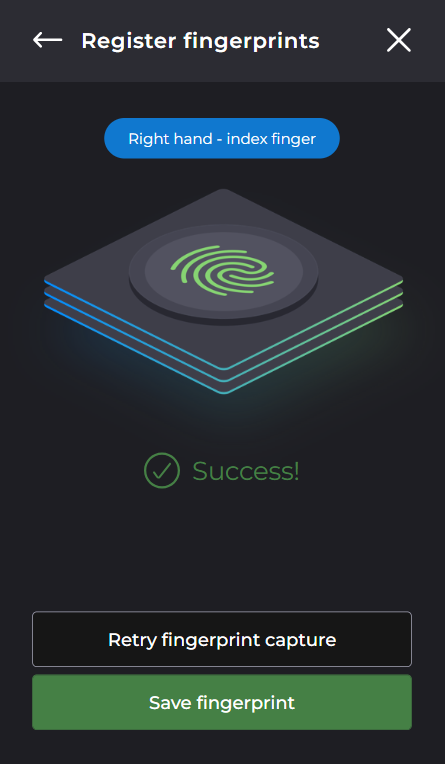

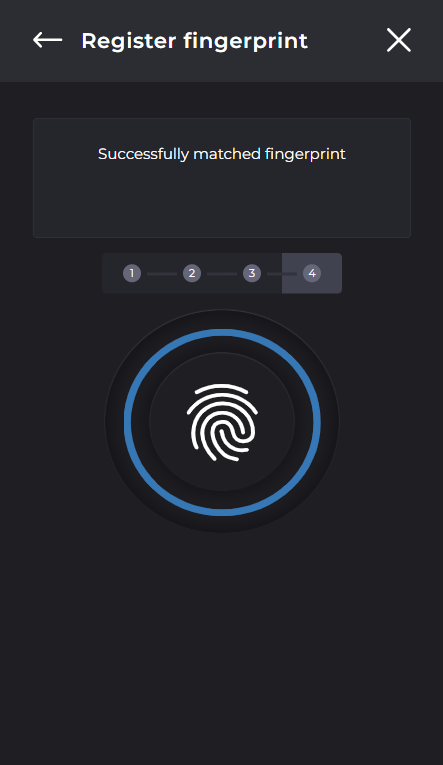

Figure 10: Confirmation of successful match screen.

Figure 11: Confirmation of successful match screen.

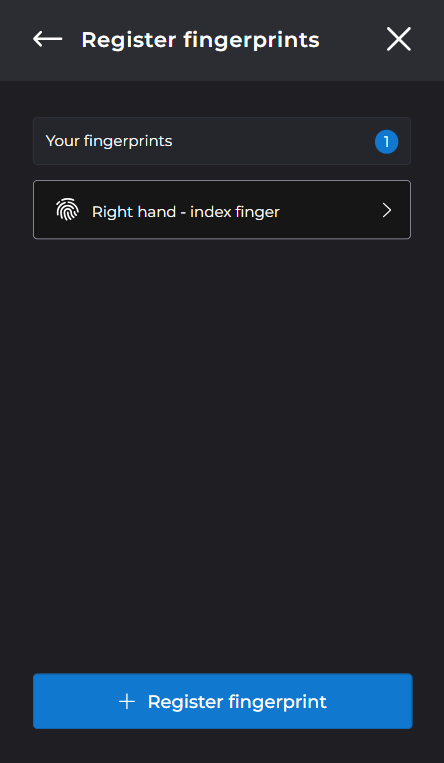

Figure 12: Register additional fingerprints screen.
